RTR-E 3000 & RTR-E 6000 Series

These successors to the 'Europa' range have been redeveloped to give an attractive modern design which incorporates proven bi-metal technology.

They are available with a wide range of variations.


 RTR-E 3000 & RTR-E 6000 Series

TYPE RTR-E

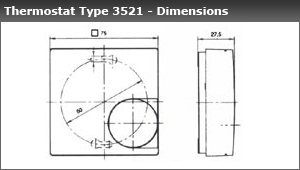

3521

3545

(Tamperproof)

6705

(Change over)

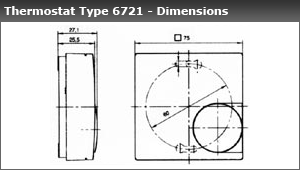

6721

(Change over)

TEMPERATURE RANGE

5 - 30C

5 - 30C

10 - 60C

5 - 30C

OPERATING VOLTAGE

230V AC

230V AC

230V AC

230V AC







HEAT 10A HEAT 10A

SWITCHING CURRENT

10A

10A

COOL 5A COOL 5A

CONTACT

SPST

SPST

SPDT SPDT








Hygrostats & Hygrothermostats

Hygrostats model 6001 are suitable for wall mounting for the automatic operation of humidifiers and de-humidifiers.

Hygrothermostats model 7001 also incorporates a room thermostat with changeover contacts for combined control of humidity and temperature. Full details on request.





TY 90 range

This range offers proven bi-metal technology and attractive appearance together with the benefit of low capital cost. The range of available units is shown below.

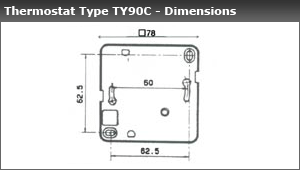

 TY90 Range

TYPE

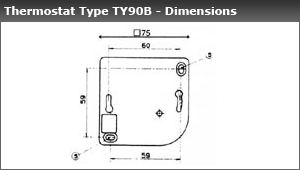

TY90B1

TY90B2

(With switch)

TY90B3

(Change over)

TY90T3

(Tamperproof)

TEMPERATURE RANGE

5 - 35C

5 - 35C

5 - 35C

5 - 35C

OPERATING VOLTAGE

230V AC

230V AC

230V AC

230V AC







HEAT 10A HEAT 10A

SWITCHING CURRENT

10A

10A

COOL 3A COOL 3A

CONTACT

SPST

SPST

SPDT SPDT
ON / OFF SWITCH

NO

YES

NO NO
